API Documentation

Introduction

Welcome to the Alliance Payin & Payout API Documentation. This guide provides everything you need to integrate with our seamless money collection (Payin) and disbursement (Payout) services.

Before You Begin

  • Ensure you have valid API credentials (Access Key / Secret Key).
  • Whitelist your server’s IP address with us.
  • Review the authentication and signature generation section carefully.

Webhooks for Payin & Payout

To keep your system always up to date, we provide webhook notifications:

  • Payin Webhook → Notifies your server when a customer’s payment succeeds, fails.
  • Payout Webhook → Notifies your server when a fund transfer is processed, rejected.

These webhooks ensure that your application can automatically update order status, trigger business logic, or notify customers without manual intervention

API Credentials

To interact with the Payin & Payout REST APIs, you will need an Access Key and a Secret Key. These credentials are used to authenticate and authorize every API request.

Follow the steps below to generate your API credentials from the CRM Dashboard:
  1. Login to the CRM portal using your registered account.
  2. Navigate to Profile → API Keys.

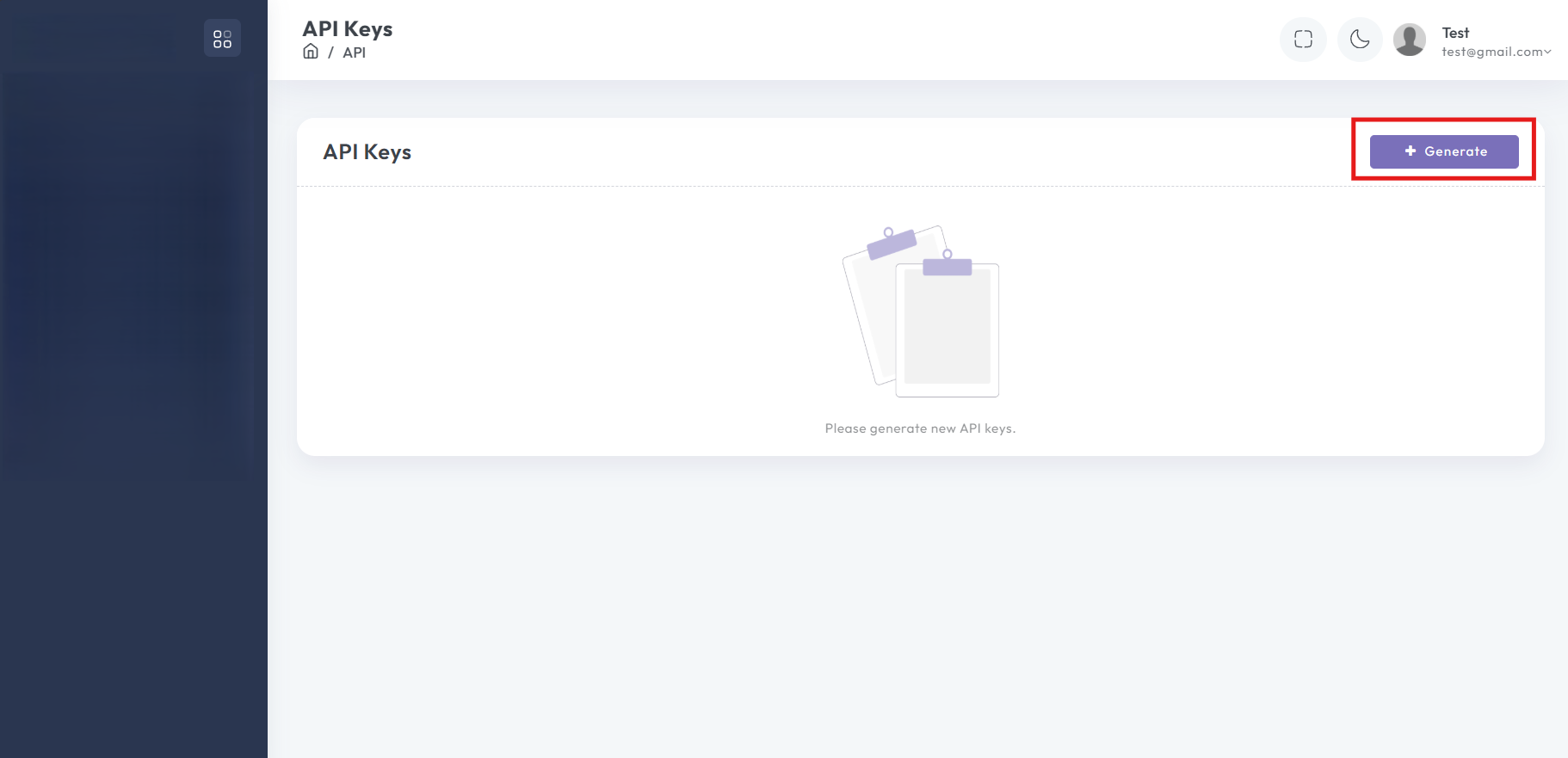

  3. Click on Generate API Key.

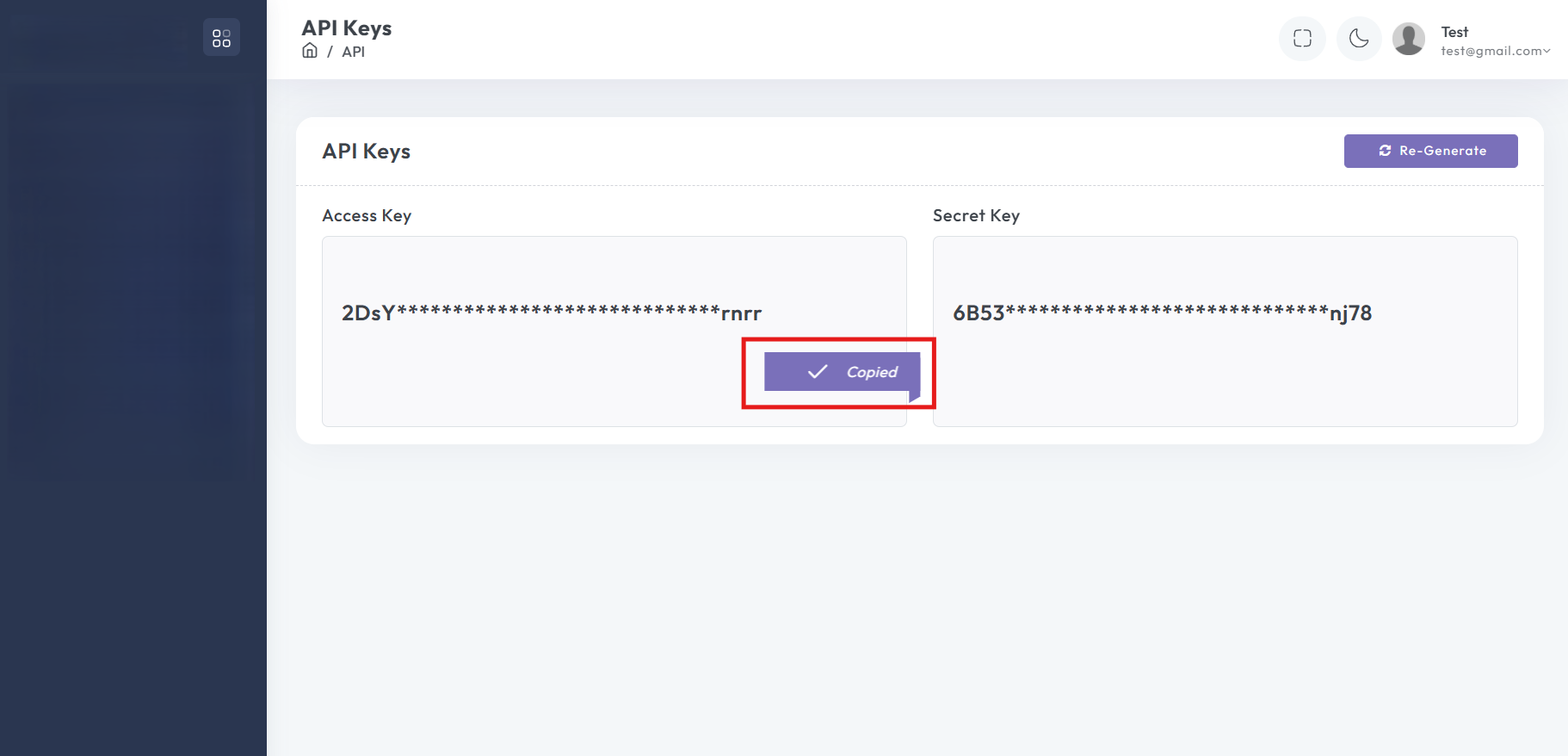

  4. The system will provide you with an Access Key and a Secret Key.

Request Headers

Every request to the Payin & Payout REST APIs must include specific HTTP headers to ensure secure and valid communication.

Required Headers:
Header Name Description Example Value
Content-Type Defines the request payload format. Always set to JSON. application/json
Access-Key Your unique API Access Key (generated from the CRM Dashboard). twvsxxxxxxxxdfsdf
Timestamp Unix timestamp of the request (used to prevent replay attacks). 1726748295
Signature HMAC SHA256 hash generated using the API Path, API Method, API Body, Timestamp, Secret Key. 7f3c5e7c8d2d1b0f86f01d...

Timestamp

The current Unix timestamp (in milliseconds) when the request is made. This prevents replay attacks — if the timestamp is too old or invalid, the request will be rejected.

Each request needs to have a Timestamp header. This is required to prevent a request replay attack. The value for this header is the number of milliseconds since epoch.

We shared some code samples in common languages on how to generate this value:

PHP:

    $timestamp = floor(microtime(true) * 1000);
Python:

    import time
    timestamp = time.time_ns() // 1000000
Javascript:

    const timestamp = Date.now();
Java:

    long timestamp = System.currentTimeMillis();

Signature

In order to successfully send a request, each request must contain a Signature key. The signature key is formed using a combination of request parameters and Secret-Key.

The signature is generated by first serializing the request into a stream of bytes. The stream has the following format:

REQUEST_METHOD

REQUEST_PATH

REQUEST_BODY

Timestamp

For example, for the request to create a payout request, the following signature string will be generated:

REQUEST_METHOD EX: POST or GET

REQUEST_PATH EX: api/v1/payout/initiate or you will find in APIs doc.

Body should be in json format

REQUEST_BODY for POST EX:

{
    "beneficiary_name": "Test Name",
    "beneficiary_email": "test.test@gmail.com",
    "beneficiary_mobile_no": 7878787878,
    "beneficiary_address": "NOIDA",
    "payment_method": "IMPS",
    "beneficiary_acc_no": "99999999999",
    "bank_name": "SBI",
    "ifsc": "SBIN0060589",
    "amount": 5,
    "order_id": "6778MYP412",
    "remarks": null
}

REQUEST_BODY for GET EX:

{}

Timestamp EX: 1790431844701.

EMPTY BODY

=> For GET requests, the body line will be left empty. However, in case of any other method and empty body, the body line should be {}.

After generating the signature string, the string needs to be hashed in HMACSHA256 format using your Secret-Key. The generated bytes need to be converted into a hex string and need to be added to the request header in the Signature header.

We shared some code samples in common languages on how to generate Signature:

PHP:

function calculate_hmac($secret, $timestamp, $body, $path, $method = 'GET')
{
    $message =  $method . "\n" . $path . "\n" . $body . "\n" . $timestamp . "\n";
    return hash_hmac('sha256', $message, $secret);
}
Python:

import hmac
import hashlib
import json

def calculate_hmac(secret: str, timestamp: str, body: dict, path: str, method: str = 'GET') -> str:
    # Convert dict to JSON string (compact, no spaces, consistent)
    body_str = json.dumps(body, separators=(',', ':'))

    digest = hmac.new(secret.encode("utf-8"), digestmod=hashlib.sha256)

    # Build the message: method + "\n" + path + "\n" + body + "\n" + timestamp + "\n"
    digest.update(method.encode("utf-8"))
    digest.update(b"\n")
    digest.update(path.encode("utf-8"))
    digest.update(b"\n")
    digest.update(body_str.encode("utf-8"))
    digest.update(b"\n")
    digest.update(timestamp.encode("utf-8"))
    digest.update(b"\n")

    return digest.hexdigest()  # lowercase hex string
Javascript:

const crypto = require('crypto');

function calculate_hmac(secret, timestamp, body, path, method = 'GET') {
  const hmac = crypto.createHmac('sha256', secret);

  // Build the message like: method + "\n" + path + "\n" + body + "\n" + timestamp + "\n"
  hmac.update(method, 'utf8');
  hmac.update('\n', 'utf8');
  hmac.update(path, 'utf8');
  hmac.update('\n', 'utf8');
  hmac.update(body, 'utf8');
  hmac.update('\n', 'utf8');
  hmac.update(String(timestamp), 'utf8');
  hmac.update('\n', 'utf8');

  return hmac.digest('hex'); // lowercase hex string
}
Java:

import javax.crypto.Mac;
import javax.crypto.spec.SecretKeySpec;
import java.nio.charset.StandardCharsets;

public class HmacUtil {

    // Convert bytes to hex string
    private static String bytesToHex(byte[] bytes) {
        StringBuilder hex = new StringBuilder();
        for (byte b : bytes) {
            hex.append(String.format("%02x", b));
        }
        return hex.toString();
    }

    // Calculate HMAC SHA256 signature
    private static String calculateHMAC(String timestamp, String secretKey, String path, String body, String method) {
        try {
            SecretKeySpec secretKeySpec = new SecretKeySpec(secretKey.getBytes(StandardCharsets.UTF_8), "HmacSHA256");
            Mac mac = Mac.getInstance("HmacSHA256");
            mac.init(secretKeySpec);

            // Build the message
            mac.update(method.getBytes(StandardCharsets.UTF_8));
            mac.update("\n".getBytes(StandardCharsets.UTF_8));
            mac.update(path.getBytes(StandardCharsets.UTF_8));
            mac.update("\n".getBytes(StandardCharsets.UTF_8));
            mac.update(body.getBytes(StandardCharsets.UTF_8));
            mac.update("\n".getBytes(StandardCharsets.UTF_8));
            mac.update((timestamp + "\n").getBytes(StandardCharsets.UTF_8));

            return bytesToHex(mac.doFinal());

        } catch (Exception e) {
            throw new RuntimeException("Error while generating HMAC", e);
        }
    }
}

APIs

Whether you are collecting payments (Payin) or disbursing funds (Payout), the APIs give you full control and visibility, allowing you to automate workflows and reduce manual effort.

Every request to the Payin & Payout REST APIs must include specific HTTP headers to ensure secure and valid communication.

Required Headers:
Header Name Description Example Value
Content-Type Defines the request payload format. Always set to JSON. application/json
Access-Key Your unique API Access Key (generated from the CRM Dashboard). twvsxxxxxxxxdfsdf
Timestamp Unix timestamp of the request (used to prevent replay attacks). 1726748295
Signature HMAC SHA256 hash generated using the API Path, API Method, API Body, Timestamp, Secret Key. 7f3c5e7c8d2d1b0f86f01d...
API Status Codes:
Status Code Description
401 Unauthorized.
422 Unprocessable content or Validation errors.
201 Transaction has been created or initiated.
200 Transaction Fetched.
404 Transaction not found.
400 Bad Request.
500 Internal Server Error.

Check Balance

The Check Balance API allows you to retrieve the current wallet balance of a merchant or account in real time. It provides accurate and up-to-date balance information, helping you verify available funds before initiating transactions or payouts.

Request Requirements:
You will get the API URI from us.
Method GET
Path api/v1/balance
Headers Required All the mention headers.
IP Address IP Address must be whitelist with us.
Request Body Ex:
{}
Response:
{
    "error": "",
    "data": {
        "balance": "1111.11"
    },
    "message": "Merchant wallet balance fetched.",
    "success": true
}
cURL:
curl --location '{{API_URL}}/api/v1/balance' \
--header 'Access-Key: YOUR_ACCESS_KEY' \
--header 'Signature: YOUR_SIGNATURE' \
--header 'Timestamp: YOUR_TIMESTAMP'

Payin Status

The Payin Status API lets you verify the current state of a payment request. Using the unique transaction reference (such as order_id), you can check whether a payment is Pending, Approved, Rejected.

Request Requirements:
You will get the API URI from us.
Method POST
Path api/v1/payin/transactions
Headers Required All the mention headers.
IP Address IP Address must be whitelist with us.
Request Body:
Name Description Example Value
order_id Required Get Specific payment status using your unique order_id. adsd-ewerz-23sdsd-ad234
Request Body Ex:
{
  "order_id": "adsd-ewerz-23sdsd-ad234"
}
Response:
{
  "error": "",
  "data": {
    "user_id": "a42332-2fs-q341-d36d34", // your user_id which you sent
    "order_id": "adsd-ewerz-23sdsd-ad234", // your unique order_id
    "transaction_id": "98675644343", // Payment unique refrence no (UTR)
    "amount": 100, // Received or final amount
    "request_amount": 100, // Requested amount from the user
    "method": "UPI",
    "comments": "Auto Approved",
    "status": "Approved", // 'Pending' or 'Approved' or 'Rejected'
    "time_of_processing": "2025-08-04 16:58:30",
    "created_at": "2025-08-04T06:16:03.000000Z",
    "updated_at": "2025-08-04T11:28:30.000000Z",
    "bank_upi": "bharatpe907m7b2z0p2i00183@yesbankltd", // The value may sometimes be null
    "bank_name": null, // The value may sometimes be null
  },
  "message": "Payin transaction fetched successfully.",
  "success": true
}

Note: You will be notify as well using webhook for the Payin Approved or Rejected.

cURL:
curl --location '{{API_URL}}/api/v1/payin/transactions' \
--header 'Access-Key: YOUR_ACCESS_KEY' \
--header 'Signature: YOUR_SIGNATURE' \
--header 'Timestamp: YOUR_TIMESTAMP' \
--form 'order_id="a12qw-32sa-32sd33s"'

Payout Initiate

This API is used to initiate a payout or transfer funds from your account to a beneficiary. It accepts the required parameters such as beneficiary details, amount, and payment method, and returns a response indicating whether the payout request was successfully created.

Request Requirements:
You will get the API URI from us.
Method POST
Path api/v1/payout/initiate
Headers Required All the mention headers.
IP Address IP Address must be whitelist with us.
Request Body:
Name Description Example Value
beneficiary_name Required Name of the beneficiary to whom the payout will be made. Test Name
beneficiary_email Required Email of the beneficiary. test.test@gmail.com
beneficiary_mobile_no Required Mobile number of the beneficiary. 7878787878
beneficiary_address Required Address of the beneficiary. NOIDA
payment_method Required Method of payment (e.g., IMPS). IMPS
beneficiary_acc_no Required Bank account number of the beneficiary. 99999999999
bank_name Required Name of the bank of the beneficiary account. SBI
ifsc Required IFSC code of the beneficiary bank branch. SBIN0060589
amount Required Amount to be transferred in INR. 100
order_id Required Unique identifier for the payout request. qweq-2d2fss-2234sd-44533
user_id Required merchant's user id for the payout request. aseq-2d2fss-22a4sd-44a33
remarks Optional Any additional notes or remarks for the payout. null
Request Body Ex:
{
  "beneficiary_name": "Test Name",
  "beneficiary_email": "test.test@gmail.com",
  "beneficiary_mobile_no": "7878787878",
  "beneficiary_address": "NOIDA",
  "payment_method": "IMPS",
  "beneficiary_acc_no": "99999999999",
  "bank_name": "SBI",
  "ifsc": "SBIN0060589",
  "amount": 100,
  "order_id": "qweq-2d2fss-2234sd-44533",
  "user_id": "aseq-2d2fss-22a4sd-44a33",
  "remarks": null
}
Response:
{
  "error": "",
  "data": {
    "beneficiary_name": "Test Name",
    "beneficiary_email": "test.test@gmail.com",
    "beneficiary_mobile_no": 7878787878,
    "beneficiary_address": "NOIDA",
    "payment_method": "IMPS",
    "beneficiary_acc_no": "99999999999",
    "bank_name": "SBI",
    "ifsc": "SBIN0060589",
    "amount": 100,
    "order_id": "qweq-2d2fss-2234sd-44533", // your unique order_id
    "user_id": "aseq-2d2fss-22a4sd-44a33", // merchant's user id
    "transaction_id": null, // Payment unique refrence no (UTR)
    "remarks": null,
    "charge": 2,
    "status": "Pending", // 'Pending' or 'Approved' or 'Rejected'
    "message": "Payout has been processing.",
    "updated_at": "2024-11-14T14:35:26.000000Z",
    "created_at": "2024-11-14T14:35:26.000000Z"
  },
  "message": "Payout initiated.",
  "success": true
}

Note: You will be notify as well using webhook for the Payout Approved or Rejected.

cURL:
curl --location '{{API_URL}}/api/v1/payout/initiate' \
--header 'Access-Key: YOUR_ACCESS_KEY' \
--header 'Signature: YOUR_SIGNATURE' \
--header 'Timestamp: YOUR_TIMESTAMP' \
--header 'Content-Type: application/json' \
--data-raw '{
    "beneficiary_name": "Test Name",
    "beneficiary_email": "test.test@gmail.com",
    "beneficiary_mobile_no": 7878787878,
    "beneficiary_address": "NOIDA",
    "payment_method": "IMPS",
    "beneficiary_acc_no": "99999999999",
    "bank_name": "SBI",
    "ifsc": "SBIN0060589",
    "amount": 5,
    "remarks": null,
    "order_id": "P0HF3PO87R65OI",
    "user_id": "hasd-feh32-sdfs-345"
}'

Payout Status

The Payout Status API lets you verify the current state of a payout request. Using the unique transaction reference (such as order_id), you can check whether a payout is Pending, Approved, Rejected.

Request Requirements:
You will get the API URI from us.
Method GET
Path api/v1/payout/{{YOUR_ORDER_ID}}/status
Headers Required All the mention headers.
IP Address IP Address must be whitelist with us.
Request Body Ex:
{}
Response:
{
  "error": "",
  "data": {
    "order_id": "qweq-2d2fss-2234sd-44533", // your unique order_id
    "user_id": "aseq-2d2fss-22a4sd-44a33", // merchant's user id
    "transaction_id": "2517319122", // Payment unique refrence no (UTR)
    "amount": 100,
    "charge": 5.9,
    "beneficiary_name": "Test Name",
    "beneficiary_address": "NOIDA",
    "beneficiary_email": "test.test@gmail.com",
    "beneficiary_mobile_no": "7878787878",
    "payment_method": "IMPS",
    "beneficiary_acc_no": "9999999999",
    "ifsc": "SBIN0060589",
    "bank_name": "SBI",
    "vpa": null,
    "remarks": null,
    "status": "Approved", // 'Pending' or 'Approved' or 'Rejected'
    "created_at": "2024-11-14T08:09:54.000000Z",
    "updated_at": "2024-11-14T14:55:36.000000Z",
    "message": "Payout has been completed."
  },
  "message": "Payout status fetched.",
  "success": true
}

Note: You will be notify as well using webhook for the Payout Approved or Rejected.

cURL:
curl --location '{{API_URL}}/api/v1/payout/{{ORDER_ID}}/status' \
--header 'Access-Key: YOUR_ACCESS_KEY' \
--header 'Signature: YOUR_SIGNATURE' \
--header 'Timestamp: YOUR_TIMESTAMP'

Sample Codes

This section provides sample requests Signature and Timestamp for different APIs, including Payin, Payout, and their respective status checks. Use these examples as a reference and update the parameter values with your actual details before making live requests.

Download Samples:
Languages Description
PHP Download sample codes for All APIs. ⬇ Download
Javascript Download sample codes for All APIs. ⬇ Download
JAVA Download sample codes for All APIs. ⬇ Download
Go Download sample codes for All APIs. ⬇ Download

Sample Webhook

This section provides sample response for different Webhook, including Payin. Use these examples as a reference and update the parameter values with your actual details before checking live response.

Payin Initiated Webhook

The Payin Initiated Webhook is triggered whenever a user clicks the “Confirm Payment” button. This webhook notifies your system in real time that a payin process has been started. Upon initiation, the system sends a request to your configured webhook URL containing essential details such as the order ID, transaction ID, amount, status, and etc.

Payin Webhook Response:
{
  "event": "payin.initiated",
  "data": {
    "user_id": "a42332-2fs-q341-d36d34",
    "order_id": "adsd-ewerz-23sdsd-ad234",
    "transaction_id": null,
    "amount": 100,
    "request_amount": 100,
    "method": "UPI",
    "comments": "Payin Initiated",
    "status": "Initiated",
    "time_of_processing": "2025-08-04 16:58:30",
    "created_at": "2025-09-09T06:16:03.000000Z",
    "updated_at": "2025-08-04T11:28:30.000000Z",
    "bank_upi": null,
    "bank_name": null
  }
}

Payin Webhook

The Payin Webhook allows you to receive real-time notifications whenever the status of a payin transaction is updated. Once a payin is processed, the system will send a request to your configured webhook URL containing details such as order ID, transaction ID, amount, status, and timestamp. Use this to automatically update your system without polling the status API.

Payin Webhook Response:
{
  "event": "payin.succeeded", // 'payin.succeeded' or 'payin.failed'
  "data": {
    "user_id": "a42332-2fs-q341-d36d34",
    "order_id": "adsd-ewerz-23sdsd-ad234",
    "transaction_id": "98675644343",
    "amount": 100,
    "request_amount": 100,
    "method": "UPI",
    "comments": "Auto Approved",
    "status": "Approved", // 'Approved' or 'Rejected'
    "time_of_processing": "2025-08-04 16:58:30",
    "created_at": "2025-09-09T06:16:03.000000Z",
    "updated_at": "2025-08-04T11:28:30.000000Z",
    "bank_upi": "gfdfgdfgdfgddg@yesbankltd",
    "bank_name": "SHRI NEELKANTH ENTERPRISE BHARATPE"
  }
}

Payout Webhook

The Payout Webhook allows you to receive real-time notifications whenever the status of a payout transaction is updated. Once a payout is processed, the system will send a request to your configured webhook URL containing details such as order ID, transaction ID, amount, status, and timestamp. Use this to automatically update your system without polling the status API.

Payout Webhook Response:
{
  "event": "payout.succeeded", // 'payout.succeeded' or 'payout.failed'
  "data": {
    "transaction_id": "2517319122", // Payment unique refrence no (UTR)
    "amount": 100,
    "charge": 5.9,
    "beneficiary_name": "Ak Test",
    "beneficiary_address": "NOIDA",
    "beneficiary_email": "test@yopmail.com",
    "beneficiary_mobile_no": "7878787878",
    "payment_method": "IMPS",
    "beneficiary_acc_no": "99999999999",
    "ifsc": "SBIN0060589",
    "bank_name": "SBI",
    "vpa": null,
    "remarks": null,
    "order_id": "qweq-2d2fss-2234sd-44533", // your unique order_id
    "user_id": "aseq-2d2fss-22a4sd-44a33", // merchant's user id
    "status": "Approved", // 'Approved' or 'Rejected'
    "created_at": "2025-09-14T14:21:56.000000Z",
    "updated_at": "2025-09-19T10:54:24.000000Z",
    "message": "Payout has been approved."
  }
}
